Installing the fanfare on the left side
WARNING:
Hot surfaces.
Risk of burning!
Risk of burning!
- Perform all work only on components that have cooled down.
NOTE:
TECHNICAL INFORMATION
Driving without the strut brace/front-end strut or tension strut is not permitted.
Driving without the strut brace/front-end strut or tension strut is not permitted.
Preliminary work
- Refer to REMOVING THE COVER PANEL OF THE SLAVE DME CONTROL DEVICE .
- Refer to REMOVING THE COVER IN THE ENGINE COMPARTMENT ON THE LEFT .
- Refer to RELEASING LEFT FRONT-END STRUT .
- Refer to REMOVING LEFT INTAKE SILENCER HOUSING .
NOTE:
TECHNICAL INFORMATION
Only replace the fanfare horn complete with the holder.
Only replace the fanfare horn complete with the holder.

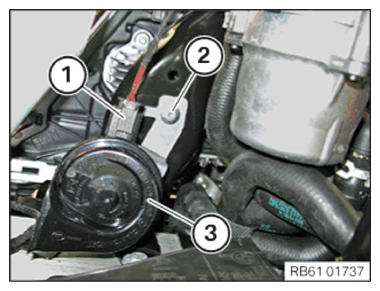

- Secure the fanfare horn and holder (3) using a blind rivet (2).
- Connect connectors (1) and lock.

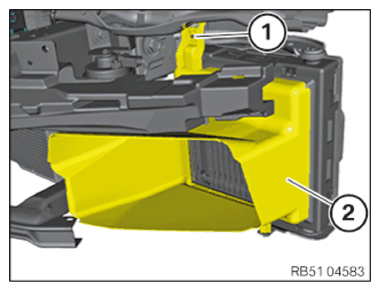

- Equipment specification with radiator:
Insert the air duct (2).
Tighten down screw (1).
TIGHTENING TORQUES SPECIFICATION
| Air duct to radiator | ||
| screw | Tightening torque | 3 Nm |
