Remove right cylinder head cover

• Unlock and disconnect the plug connection (1)  on the pressure sensor for intake air pressure.
• Unlock and disconnect the plug connection (2)  on the Valvetronic servomotor.
• Release the wiring harness mounting (3)  .

  Courtesy of BMW OF NORTH AMERICA, INC.

• Unlock plug connection (1)  and disconnect.
• Remove the cover of the positive battery cable (2)  in an upwards direction.

  Courtesy of BMW OF NORTH AMERICA, INC.

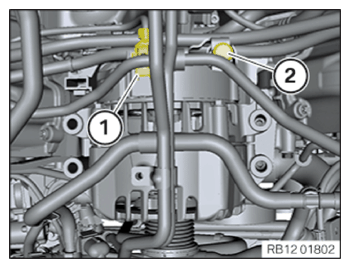

• Loosen nut (1)  .
• Put the positive battery cable to one side.

Courtesy of BMW OF NORTH AMERICA, INC.

Removing both VANOS solenoid actuators, exhaust of cylinder bank 1

• Unlock and disconnect plug connections (1)  .

  Courtesy of BMW OF NORTH AMERICA, INC.

• Turn VANOS solenoid actuator (1)  about 50° counter-clockwise with the special tool 2 360 895 (2)  .
• Remove VANOS solenoid actuator (1)  .

  Courtesy of BMW OF NORTH AMERICA, INC.

• Turn VANOS solenoid actuator (1)  about 50° counter-clockwise with the special tool 2 360 895 (2)  .
• Remove VANOS solenoid actuator (1)  .

Courtesy of BMW OF NORTH AMERICA, INC.

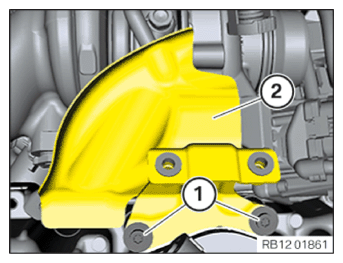

Removing right mount

• Loosen screws (1)  .
• Remove the right mount (2)  .

Courtesy of BMW OF NORTH AMERICA, INC.

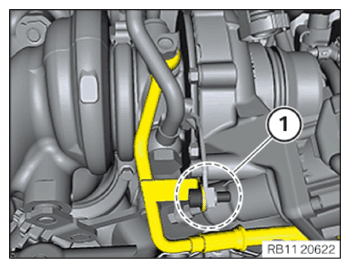

• Loosen screw (1)  .

  Courtesy of BMW OF NORTH AMERICA, INC.

• Determine screw type and select the matching socket wrench:

  Screw type	Matching socket wrench
  Hexagon screw (3)	Standard socket wrench (1)
  Multi-tooth screw (4)	Multi-tooth socket wrench (2)

  Courtesy of BMW OF NORTH AMERICA, INC.

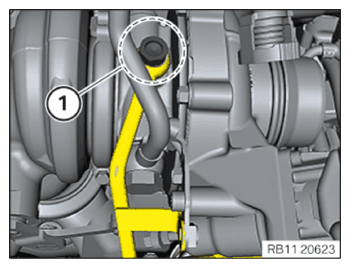

• Loosen screw (1)  .
• Place oil feed line to the side.

  Courtesy of BMW OF NORTH AMERICA, INC.

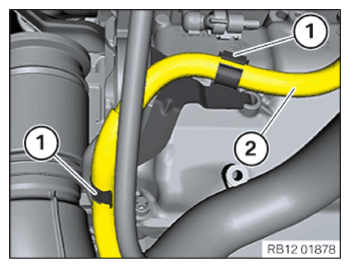

• Release the starter cable (2)  from the clamps (1)  .

Courtesy of BMW OF NORTH AMERICA, INC.

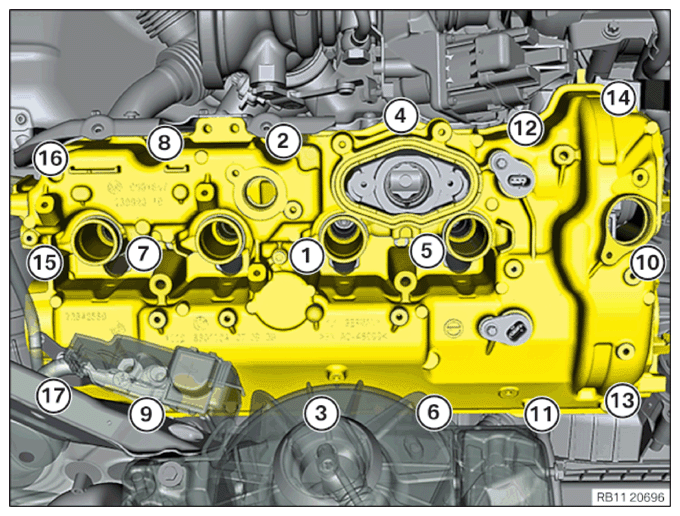

Releasing cylinder head cover of cylinders 1 to 4

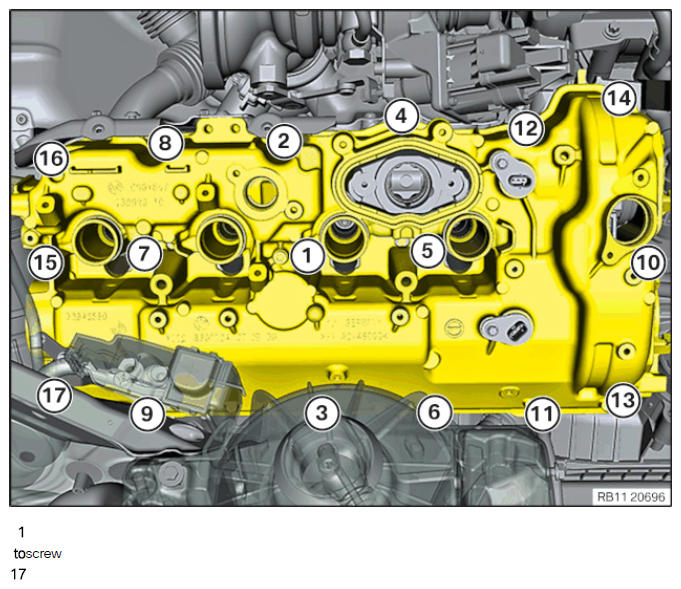

Cylinder head cover: Cylinders 1 to 4

• Unscrew bolts (1)  to (17)  .
• Feed out and remove the cylinder head cover in an upward direction.
