Remove the gear from the crankshaft

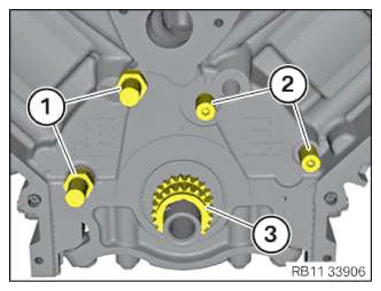

- Replace the bearing screws (1)
.
Parts: Bearing screws
TIGHTENING TORQUE SPECIFICATIONS
| Bearing screw to engine block | ||
|---|---|---|
| Bearing screw M10x1.25 Replace the bearing screw. Clean the thread in the engine block with a screw tap. |
Tightening torque | 46 Nm |
- Clean the thread in the engine block with a screw tap.
- Replace the bearing screws (2)
.
Parts: Bearing screws
TIGHTENING TORQUE SPECIFICATIONS
| Bearing screw to engine block | ||
|---|---|---|
| Bearing screw M8x1.25 Replace the bearing screw. Clean the thread in the engine block with a screw tap. |
Tightening torque | 20 Nm |
- Clean the thread in the engine block with a screw tap.
- Replace the sprocket wheel (3)
.
Parts: Camshaft sprocket

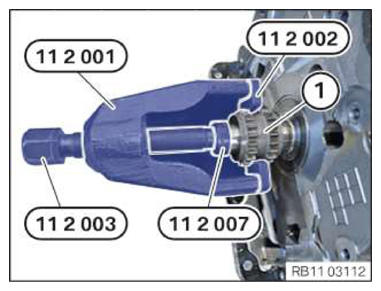

- Detach the gear (1) using the special tools 0 490 798 (11 2 000) and 0 490 798 (11 2 000) .
- Make sure that there are no metal chips or similar contaminants in the area of the chain drive, cleaning if necessary.
