Install the decorative strip on the right dashboard

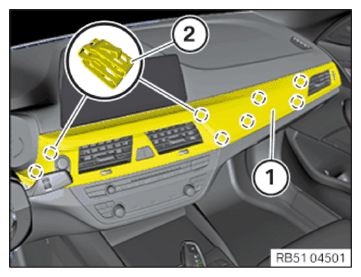

• Connect the decorative strip (1) with the associated connectors.
• Clip in the decorative strip (1) with the clamps (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

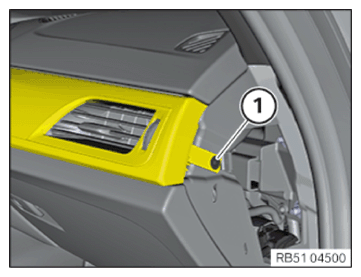

• Tighten down screw (1).
  TIGHTENING TORQUE SPECIFICATIONS



  decorative strip

  1.8 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE SIDE PANEL ON DASHBOARD ON THE RIGHT .
