Removing the rear door trim panel

Preliminary work

• Refer to REMOVING THE COVER ON THE DOOR HANDLE .

If installed: Remove the roller sunblind at the side window glass

• Open side window.

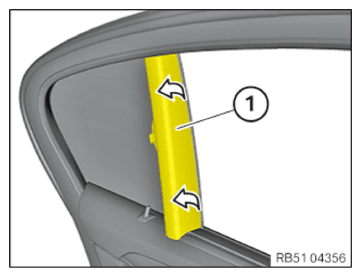

• Detach the roller sunblind (1) from the window guide with a suitable plastic wedge in the direction of the arrow and guide it out.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Loosen screws (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Detach the door trim panel (1) from the clips (2) with a suitable plastic wedge.
• Remove the door trim panel (1) from the window cavity seal to the top.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Detach the Bowden cable (1) for the release lever at the counter support (2),
• Detach the Bowden cable (1) for the release lever at the door lock (3).
• Disconnect all plug connections and cable clips of the wiring harness (4) and remove the door trim panel.

  Courtesy of BMW OF NORTH AMERICA, INC.
