Install the speaker cover on the door trim panel

• Saw off all welding pins (1) along the molding (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Remove welding remnants on door trim panel with a scalpel.

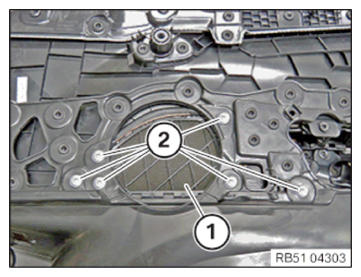

• Install speaker cover (1).
  NOTE: Welding pins must not protrude from the door trim panel.
• Screw the repair screws (2) into the speaker cover (1) and tighten.
  TIGHTENING TORQUE SPECIFICATIONS



  Repair screw to door trim panel
  Oval-head screw TS4x10ISA	2.3 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING FRONT DOOR TRIM PANEL .
• Refer to INSTALLING THE MIRROR TRIANGLE COVER .
• Refer to ATTACHING THE COVER TO THE DOOR HANDLE .
