Installing the center armrest

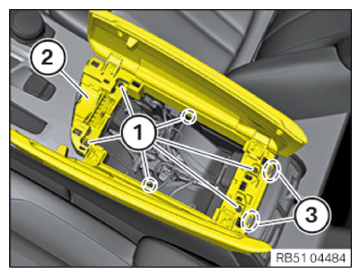

• Insert center armrest (2) and guide it in below the ventilation grille in the area (3).
• Tighten the screws (1).
  TIGHTENING TORQUE SPECIFICATIONS



  Center armrest

  1.8 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE CENTER ARMREST STORAGE COMPARTMENT .
