Installing the rear center console trim

• Connect all connectors.

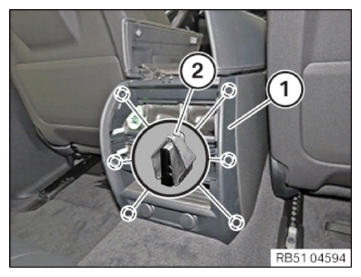

• Clip in the center console trim on the rear (1) at the clamps (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE REAR VENTILATION GRILLE .
• Refer to INSTALLING THE VENTILATION GRILLE IN THE REAR (AIR CONDITIONING SYSTEM WITH 4-ZONE CONTROL) .
• Refer to INSTALLING THE CONTROL PANEL OF THE REAR PASSENGER COMPARTMENT AIR CONDITIONING (INTEGRATED AUTOMATIC CLIMATE CONTROL WITH 4-ZONE CONTROL) .
