Installing the front rubber mount for the rear axle support on the left and right

NOTE: RISK OF DAMAGE
Damage to the rear axle support  .
Damage to the rear axle support due to non-compliance with the direction of extraction and the direction of insertion of the rubber mount  .

• Adherence to the pull-out and pull-in direction is absolutely mandatory.

NOTE: Perform the steps on the left and right side.

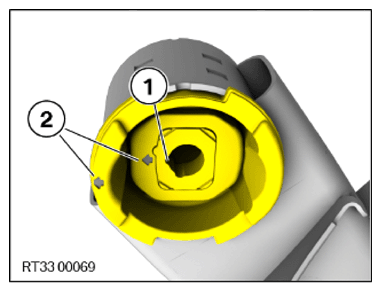

• Ensure that notch (1)  and arrows (2)  of the front rubber mount point in the driving direction.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Align the recesses at special tool 0 494 972 (33 4 433) with the rubber mount  .
• Pull the front rubber mount as far as it will go with the special tools 0 494 971 (33 4 432), 0 494 972 (33 4 433), 2 155 744, 2 208 574 and 2 208 576  .
• Remove the special tools for inserting the rubber mount.

Courtesy of BMW OF NORTH AMERICA, INC.
