Installing the electric drive unit in the rear axle support

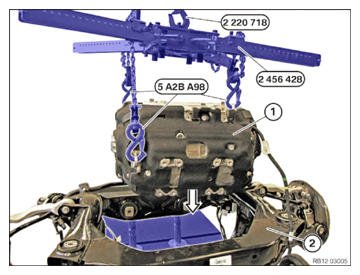

- Position highly integrated electrified drive topology (1) using 2 220 718
, 2 456 428
and 5 A2B A98
over the rear axle support (2) as shown.

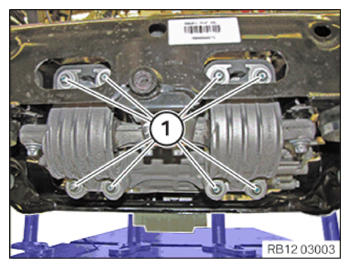

- Carefully lower the electric drive unit so far into the rear axle support that the openings align with the screws (1).
- Tighten the screws (1).
TIGHTENING TORQUE SPECIFICATION
| Bearing bracket to highly integrated electrified drive topology | |
|---|---|
| M10 | 56 Nm |

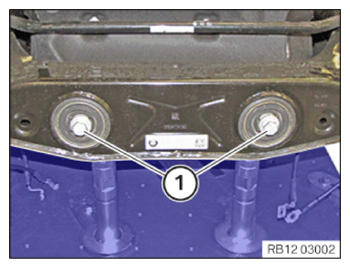

- Tighten the screws (1).
TIGHTENING TORQUE SPECIFICATION
| Rubber mount to highly integrated electrified drive topology | ||
|---|---|---|
| M14 Replace screw. |
Tightening torque | 165 Nm |
| Angle of rotation | 90° | |

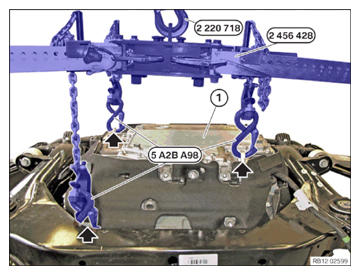

- 2 220 718 , 2 456 428 and 5 A2B A98 remove from the highly integrated electrified drive topology (1).
