Tightening the screw connections on the wheel carrier

NOTE: TECHNICAL INFORMATION
Tighten the screw connection in the NORMAL POSITION .

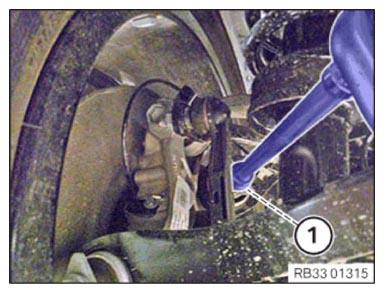

• Slacken screw (1) on the control arm by one turn.
• Tighten down screw (1).

TIGHTENING TORQUE SPECIFICATION

Control arm to wheel carrier
M14 Replace screw. Tighten in normal position.	Joining torque	165 Nm
	Angle of rotation	90°

Courtesy of BMW OF NORTH AMERICA, INC.

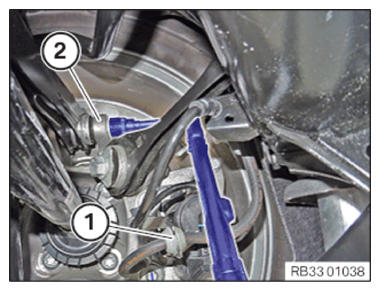

• Detach the brake hose (1) from the bracket.
• Slacken screw connection (2) to the upper wishbone by one turn.
• Tighten screw connection (2).

TIGHTENING TORQUE SPECIFICATION

Upper wishbone to wheel carrier
M12 Replace screw and nut. Tighten in normal position.	Joining torque	100 Nm
	Angle of rotation	90°

Courtesy of BMW OF NORTH AMERICA, INC.

• Attach the brake hose (1) in the bracket.

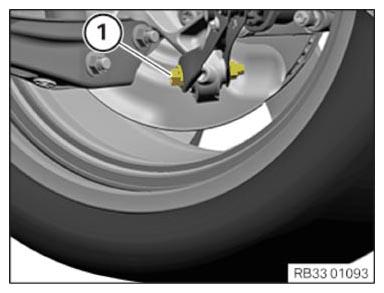

• Slacken screw (1) on the control link by one turn.
• Tighten down screw (1).

TIGHTENING TORQUE SPECIFICATION

Track arm to wheel carrier
M12 Replace screw. Tighten in normal position.	Joining torque	100 Nm
	Angle of rotation	90°

Courtesy of BMW OF NORTH AMERICA, INC.

• Slacken screw connection (1) to the trailing arm by one turn.
• Tighten the screw connection (1).

TIGHTENING TORQUE SPECIFICATION

Trailing arm to wheel carrier
M12 Replace screw and nut. Tighten in normal position.	tightening torque	100 Nm
