Install cover

TIGHTENING TORQUE SPECIFICATION

Underbody planking on body
Hexagon screw tightening torque  2.6 Nm

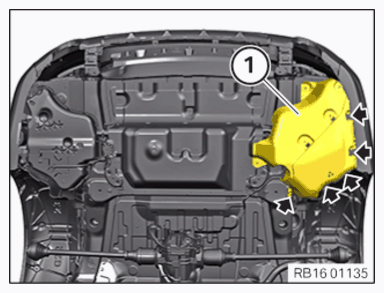

G14994605Courtesy of BMW OF NORTH AMERICA, INC.
TIGHTENING TORQUE SPECIFICATION

Underbody planking on body
Plastic nut tightening torque  2.6 Nm
TIGHTENING TORQUE SPECIFICATION

Underbody planking on body
Hexagon screw tightening torque  2.6 Nm

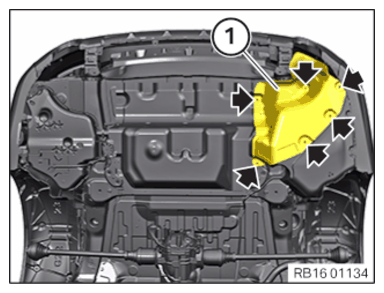

G14994604Courtesy of BMW OF NORTH AMERICA, INC.
TIGHTENING TORQUE SPECIFICATION

Underbody planking on body
Plastic nut tightening torque  2.6 Nm


TIGHTENING TORQUE SPECIFICATION

Cover on steering wheel
Screw TS5x12 tightening torque  2 Nm

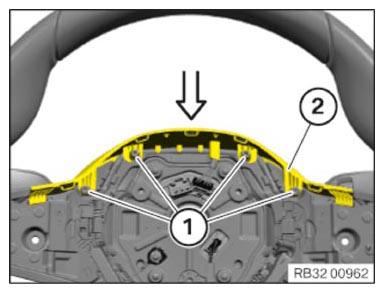

G14435279Courtesy of BMW OF NORTH AMERICA, INC.
