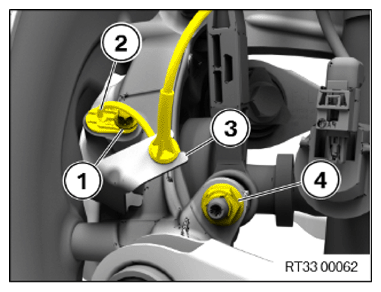

Fastening the anti-roll bar link and wheel speed sensor to the wheel carrier
- Position the anti-roll bar link on the wheel carrier.
- Press the control link slightly downwards.
- Replace nut (4).
Parts: Nut
- Tighten nut (4). If necessary, counter support at the Torx socket.
TIGHTENING TORQUE SPECIFICATION
| Rear anti-roll bar link to anti-roll bar/wheel carrier | ||
| M10 Replace nut. |
tightening torque | 56 Nm |
- Clean and grease the bore for wheel speed sensor (2).
CONSUMABLE SPECIFICATION
| Lubricating grease Staburags NBU 12K | 100 g, Tube | 83 23 9 407 810 |
- Position the wheel speed sensor (2).
- Replace the screw (1).
Parts: Screw
- Tighten down screw (1).
TIGHTENING TORQUE SPECIFICATION
| Rear wheel speed sensor on wheel carrier | ||
| M6 Replace screw. |
Tightening torque | 12 Nm |
NOTE:
The following step(s) must be performed if the listed component(s) is/are installed.
- Hook the cable for the wheel speed sensor in the holder (3).
