Connecting the connector for the steering wheel heating

NOTE: The following step(s) must be performed if the listed component(s) is/are installed.

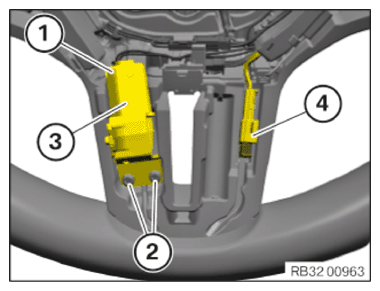

• Connect connectors (4) and lock.
• Position the (3) vibration actuator.
• Tighten the screws (2).

TIGHTENING TORQUE SPECIFICATION

Balance weight/vibration actuator on steering wheel
Screw	tightening torque	2.2 Nm

• Connect connectors (1) and lock.
