Partly removing left and right luggage compartment wheel arch trim panel

Partly remove luggage compartment wheel arch trim panel on left

NOTE: Schematic diagram is for example purposes. Some parts may differ in certain details.

Loosen the expanding rivet (1).

Courtesy of BMW OF NORTH AMERICA, INC.
Press luggage compartment wheel arch trim panel lug (2) on the outer side of the hinge forwards over the stop on the trim (1).
Feed out the luggage compartment wheel arch trim panel (2) under the sealing lip of the seal for the trunk lid.

Courtesy of BMW OF NORTH AMERICA, INC.

Partially remove the luggage compartment wheel arch trim panel on the right

NOTE: Schematic diagram is for example purposes. Some parts may differ in certain details.

Removing the emergency release handle for the tailgate (additional work for US version)

NOTE: Schematic diagram is for example purposes. Some parts may differ in certain details.

Loosen the emergency release handle (1) for the tailgate from the holder.
Detach the Bowden cable (2) and remove the emergency release handle (1) for the tailgate.

Courtesy of BMW OF NORTH AMERICA, INC.

Loosen the expanding rivet (1).

Courtesy of BMW OF NORTH AMERICA, INC.
Press luggage compartment wheel arch trim panel lug (2) on the outer side of the hinge forwards over the stop on the trim (1).
Feed out the luggage compartment wheel arch trim panel (2) under the sealing lip of the seal for the trunk lid.

Courtesy of BMW OF NORTH AMERICA, INC.

Partially removing luggage compartment wheel arch trim panel

NOTE: Schematic diagram is for example purposes. Some parts may differ in certain details.

Unclip the cover (1).
Unscrew the screw (2) and remove the rear lashing eye (3).

Courtesy of BMW OF NORTH AMERICA, INC.

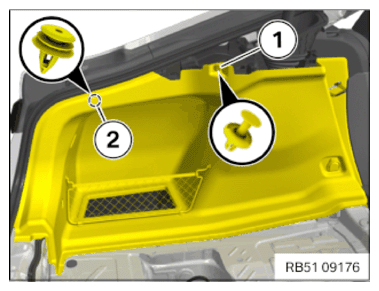

Release expanding rivet (1).
Guide the luggage compartment wheel arch trim panel out of the sealing lip of the tailgate seal.
Release the luggage compartment wheel arch trim panel with the clip (2) and swivel it inward.

Courtesy of BMW OF NORTH AMERICA, INC.

Partially remove the luggage compartment wheel arch trim panel on the right

NOTE: Schematic diagram is for example purposes. Some parts may differ in certain details.

NOTE: Description is for left component only.
Procedure on the right side is identical.

Courtesy of BMW OF NORTH AMERICA, INC.

Removing the emergency release handle for the tailgate (additional work for US version)

NOTE: Schematic diagram is for example purposes. Some parts may differ in certain details.

Loosen the emergency release handle (1) for the tailgate from the holder.
Detach the Bowden cable (2) and remove the emergency release handle (1) for the tailgate.

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Schematic diagram is for example purposes. Some parts may differ in certain details.

Fold out multi-function hook.
Unclip the cover (2) with the special tool 0 490 540 (00 9 323) . To do this, place a corner of the special tool on the bottom left on the cover (2).
Loosen screw (3).

Courtesy of BMW OF NORTH AMERICA, INC.
Release expanding rivet (1).
Feed out the luggage compartment wheel arch trim panel from the sealing lip of the tailgate seal.
Release the luggage compartment wheel arch trim panel with the clip (2).

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: TECHNICAL INFORMATION
The number of connectors on the described component may vary depending on the equipment version.
If necessary, unlock and disconnect, or connect and lock, all other connectors.
Swivel the luggage compartment wheel arch trim panel inward.
Unlock plug connection (1) and disconnect.

Courtesy of BMW OF NORTH AMERICA, INC.
