Installing the seat surface cover for the rear seat bench

• Position seat cover (1) and insert in the area (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Secure all trim wires with the clamps.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Secure the clamps (1) on the left and right.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Replace the clamps (2).

  Parts:  Clamps

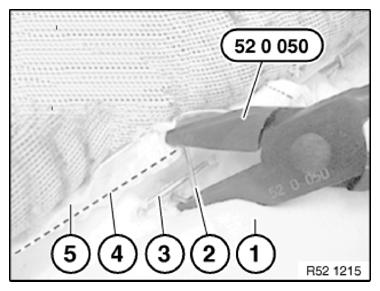

• Insert the clamp (2) with the special tool 0 492 668 (52 0 050).
• Cover the trim wire of the foam cushion (1) and the trim wire (4) of the seat surface cover (5) using the clamp (2) and bend the clamp (2) shut.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Attach the seat surface cover with the holders (1) on the cushion.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Clip in the ISOFIX glares (1).

Courtesy of BMW OF NORTH AMERICA, INC.
