Installing the brace for the rear bumper cover

NOTE: Schematic diagram is for example purposes.
Some parts may differ in certain details.

• Position the brace.

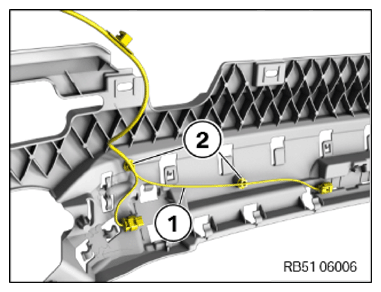

• Clip in vehicle wiring harness (1) with the holders (2).
• Depending on equipment, connect and lock all connectors.

  Courtesy of BMW OF NORTH AMERICA, INC.

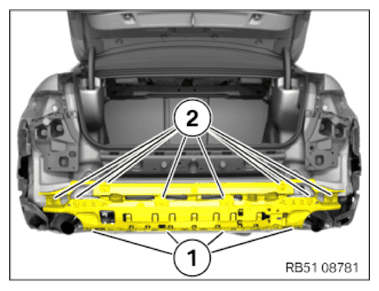

• Position the brace.
• Secure expanding rivet (2).
• Tighten the screws (1).

TIGHTENING TORQUE SPECIFICATION

Rear diffuser
screw	Tightening torque	3 Nm

Courtesy of BMW OF NORTH AMERICA, INC.
