Install front cross connection
Install front cross connection

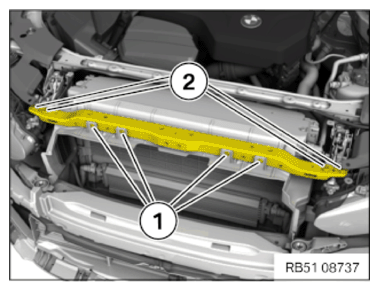

Feed in the front cross connection from the top and position it.
Tighten the screws (2).
TIGHTENING TORQUE SPECIFICATION
Cross connection at the front of the lock
Combination oval-head machine screw
tightening torque
28 Nm
Secure expanding rivet (1).
