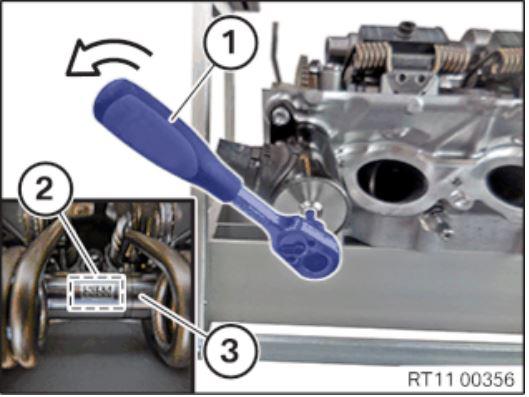

Adjusting the eccentric shaft to the minimum lift (cylinder head removed)

Courtesy of BMW OF NORTH AMERICA, INC.

• Adjust the eccentric shaft (3) slowly to the minimum lift with the help of the servomotor using a standard Allen wrench (1) with 4 mm in arrow direction.
• Ensure that the marking (2) on the eccentric shaft (3) faces up.
