Preparing the oil vacuum pump
NOTE:
RISK OF DAMAGE
Contaminant or foreign body .
Contamination can result in malfunctions, loss of function or leaks .
Contaminant or foreign body .
Contamination can result in malfunctions, loss of function or leaks .
- Adhere to the utmost cleanliness.
- Protect components from contamination e.g. by covering.
- Close off line connections with seal plugs.

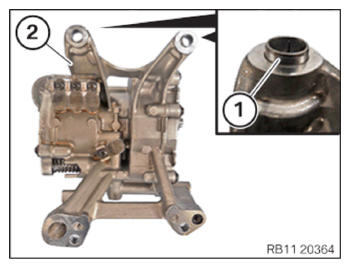

- Feed out and remove the centering sleeves (1) using standard tools (2) in arrow direction.
- Replace the centering sleeves (1)
.
Parts: Centering sleeves
- Feed in and install centering sleeves (1)
on the oil vacuum pump (2)
.
- Insert and install the sprocket wheel (1) at the oil vacuum pump (2) . Make sure that the labeling on the sprocket wheel points to the front.
NOTE:
TECHNICAL INFORMATION
Conduct the following operation with the assistance of a second person.
Conduct the following operation with the assistance of a second person.
NOTE:
TECHNICAL INFORMATION
The thread is a left-hand thread.
The thread is a left-hand thread.
- Replace the screw (1)
.
Parts: Screw
- Feed in the screw (1) and install.
- Counter hold the sprocket wheel with the special tool 0 491 440 (23 0 020) and tighten the screw (1) with standard tools (2) .
TIGHTENING TORQUE SPECIFICATION
| Sprocket wheel at the oil vacuum pump | ||
|---|---|---|
| M8 Important - left-hand thread Replace screw. |
1. Joining torque | 5 Nm |
| 2. Angle of rotation | 90° | |

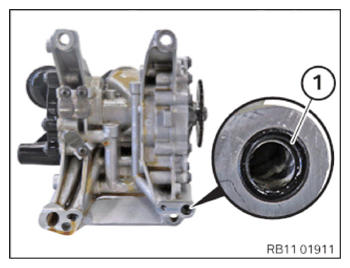

- Make sure the sealing ring (1)
is installed correctly.
The sealing ring (1) must not be damaged or missing.
