Removing the wiring harness for the right convertible top compartment lid mechanism
Preliminary work
- Refer to REMOVING THE CONVERTIBLE TOP COMPARTMENT LID .

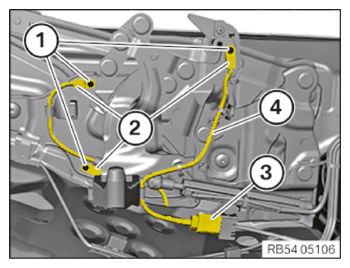

- Loosen the expanding rivet (1).
- Remove Hall effect sensors (2).
- Unlock plug connection (3) and disconnect.
- Unclip and remove the wiring harness for the convertible top compartment lid mechanism (4) from the existing holders.
NOTE:
If necessary, shift the convertible top compartment lid mechanism manually to improve accessibility to the Hall effect sensors.
