Installing the rear module bracket

Check

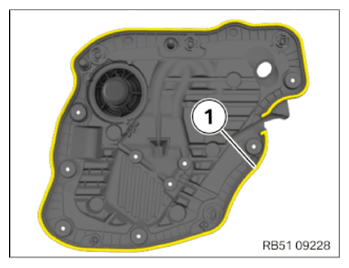

• Check the seal (1) on the module bracket for damage.

Courtesy of BMW OF NORTH AMERICA, INC.

Result

» The seal (1) is damaged.

Measure

• Replace the module bracket.

• Clip in the power window (1) with the detents (2) on the module bracket.
• Install the module bracket.

Courtesy of BMW OF NORTH AMERICA, INC.

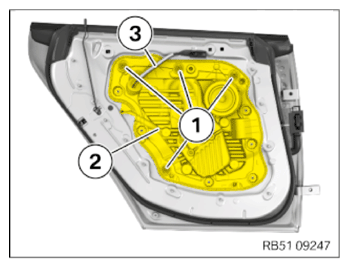

• Position the module bracket (2) on the door. In doing so, guide the Bowden cable (3) for the door opener into the module bracket (2).
• Lock the bayonet closures (1) by rotating them.

  Courtesy of BMW OF NORTH AMERICA, INC.

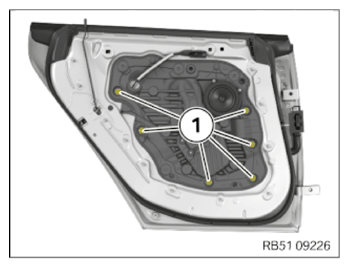

• Tighten the screws (1).
  TIGHTENING TORQUE SPECIFICATION



  Module bracket at the rear door
  M5x12 screw	Tightening torque	8 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

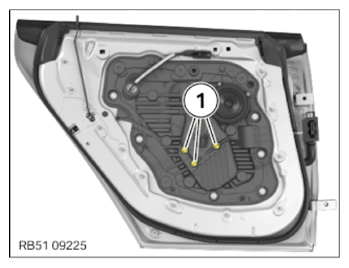

• Tighten nuts (1).
  TIGHTENING TORQUE SPECIFICATION



  Power electric windows to door
  Combination hexagon nut, self-locking	tightening torque	9.5 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

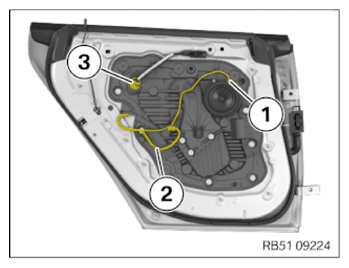

• Install the rubber grommet (3) of the Bowden cable for the door opener.
• Clip in the wiring harness (2) on the module bracket.
• Connect connectors (1) and lock.

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING REAR DOOR TRIM PANEL .
