Removing the seat-belt extender controller (LCPA)
Preliminary work
- Refer to REMOVING REAR SEAT BENCH .
- Refer to REMOVING ARMREST SIDE SECTION .
- Refer to REMOVING C-PILLAR TRIM PANEL .
- Refer to REMOVING THE INNER DOOR SILL COVER STRIP .
- Refer to REMOVING REAR SIDE TRIM PANEL .

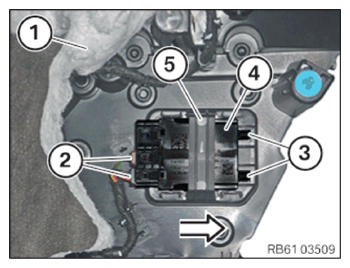

- Slide insulation (1) aside as shown.
- Unlock plug connections (2) and disconnect.
- Unlock the latch mechanisms (3).
- Pull the seat-belt extender controller (LCPA) (4) in arrow direction from the holder (5).
