Installing the seat-belt extender controller (LCPA)

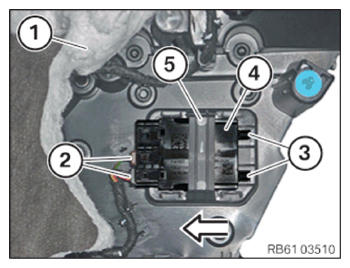

- Position the seat-belt extender controller (LCPA) (4) on the holder (5) and move in the direction of arrow, until the detents (3) engage.
- Connect connector (2).
- Route the insulation (1) correctly.
Follow-up work
- Refer to INSTALLING REAR TRIM PANEL .
- Refer to INSTALLING THE INNER DOOR SILL COVER STRIP .
- Refer to INSTALLING C-PILLAR TRIM PANEL .
- Refer to INSTALLING BACKREST SIDE SECTION .
- Refer to INSTALLING THE REAR SEAT .
