Installing the seat-belt extender controller (LCPA)

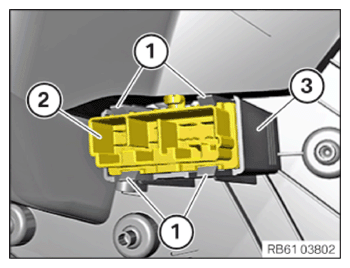

• Position seat-belt extender controller (2) and install it in holder (3).

  Detents (1) must be locked in place correctly.

  Courtesy of BMW OF NORTH AMERICA, INC.

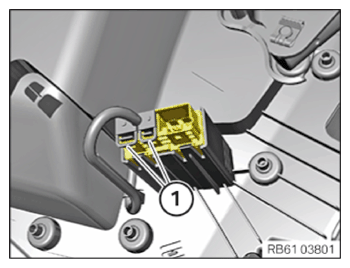

• Connect connector (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING REAR TRIM PANEL .
• Refer to INSTALLING THE UPPER TRIM PANEL ON ROLLOVER PROTECTION SYSTEM .
• Refer to INSTALLING THE REAR LEFT AND RIGHT HEAD RESTRAINT GUIDES .
• Refer to INSTALLING REAR LEFT AND RIGHT HEAD RESTRAINTS .
• Refer to REMOVING REAR SEAT BACKREST .
• Refer to INSTALLING THE LEFT AND RIGHT BACKREST SIDE SECTION .
• Refer to INSTALLING THE REAR SEAT .
• Refer to INSTALLING THE INNER DOOR SILL COVER STRIP .
• Refer to ATTACHING THE REAR OUTER WINDOW RECESS FINISHER STRIP .
