Remove the control unit for the power tailgate (HKL)
NOTE:
Risk of damage
Electrostatic discharge.
Damage to or destruction of electrical components.
Electrostatic discharge.
Damage to or destruction of electrical components.
- Leave the electrical components in their original packaging until they are being installed. only use the original packaging for returning the product. always package removed components straight away.
- Read and comply with user information on using the associated special tool 12 7 060.
- Only tap the housings of electrical components. do not tap pins or multi-pin connectors directly.
- Wear electrically conductive clothing and antistatic shoes (with esd symbol).
- For additional information see: NOTES ON ESD PROTECTION (ELECTRO STATIC DISCHARGE) .
Preliminary work
- Refer to DEACTIVATING THE 48V ELECTRICAL SYSTEM .
- Refer to DISCONNECTING AND CONNECTING BATTERY GROUND LEAD .
- Refer to REMOVING REAR WINDOW STORAGE SHELF AT FRONT .
- Refer to REMOVING LUGGAGE COMPARTMENT FLOOR COVERING .
- Refer to REMOVING THE LOADING EDGE TRIM .
- Refer to REMOVING THE RIGHT LUGGAGE COMPARTMENT COVER .
- Refer to REMOVING LED IN LUGGAGE COMPARTMENT ON RIGHT .
- Refer to REMOVING RIGHT LUGGAGE COMPARTMENT WHEEL ARCH TRIM PANEL .

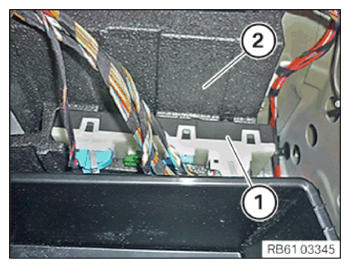

- Remove the control unit for the automatic tailgate operation (1) from the holder (2) in an upwards direction.

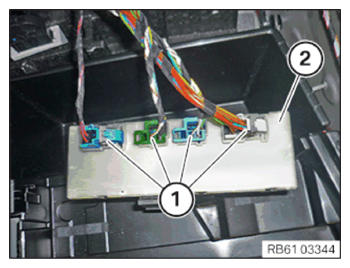

- Unlock and disconnect the plug (1).
- Remove the control unit for automatic tailgate operation (2).
