Remove lin power distribution box
WARNING:
Work on components with requirements for a secure energy supply
Ensure proper function after a repair
Ensure proper function after a repair
- Lines are allowed to have only One repair area.
- Notices in the diagnostic system circuit diagrams must be observed. notes on the content and handling of diagnosis information in ista. refer to 61 35 013 REMOVING AND INSTALLING LIN POWER DISTRIBUTION BOX (4' SERIES COUPE MODELS) .
- When components are replaced, the notices in the applicable BMW parts catalogue (applicable BMW parts catalogue) must be observed.
Preliminary work
- Refer to DEACTIVATING THE 48V ELECTRICAL SYSTEM .
- Refer to DISCONNECTING ALL BATTERY GROUND LEADS .
- Refer to REMOVING THE FLAP IN THE LUGGAGE COMPARTMENT WHEEL ARCH TRIM PANEL ON THE RIGHT .
WARNING:
Work on components with requirements for a secure energy supply
Ensure proper function after a repair
Ensure proper function after a repair
- Lines are allowed to have only One repair area.
- Notices in the diagnostic system circuit diagrams must be observed. notes on the content and handling of diagnosis information in ista.
- When components are replaced, the notices in the applicable BMW parts catalogue (applicable BMW parts catalogue) must be observed.
- Unlock detents (1) and feed out the power distribution box (2) from holder (3).

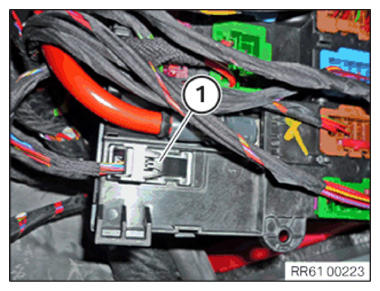

- Unlock plug connection (1) and disconnect.
- Release the lock (1) in arrow direction.
- Remove lin power distribution box (2).
