Installing the rear power distribution box

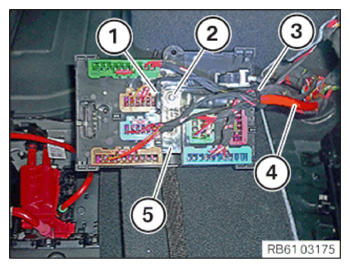

• Position the positive battery cable (4) at the power distribution (5).
• Tighten nut (2).

Courtesy of BMW OF NORTH AMERICA, INC.

• Close lid (1).
• Replace the cable tie (3) at the positive battery cable (4).

  Parts:  cable tie

• Connect all connectors and lock.

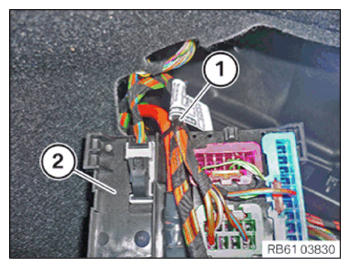

• Feed in the cable tie (1) through both of the openings on the power distribution (2) and tighten.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Position the power distribution (2) correctly and engage it into the holder (3).

  Detents (1) must engage correctly.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Push the pdc/pma control unit (2) upwards into the holder.
• Lock the lock (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE FLAP IN THE LUGGAGE COMPARTMENT WHEEL ARCH TRIM PANEL ON THE RIGHT .
• Refer to CONNECTING ALL BATTERY GROUND LEADS .
• Refer to ACTIVATING THE 48V ELECTRICAL SYSTEM .
