Installing the rear panel on center rear seat backrest

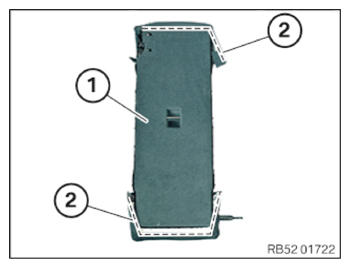

• Guide in and correctly position the rear panel (1).
• Clip in the edge stripping of the backrest covering along the dashed line (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

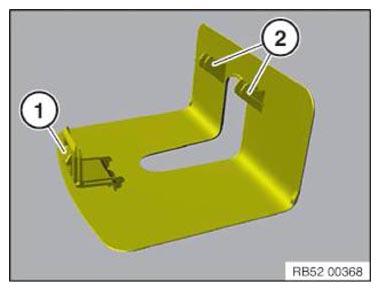

• Check snap-in lugs (1) and guide (2) for damage. If necessary, replace the lock finisher.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Clip in the lock finisher (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE TRIM FOR THE CENTER ARMREST .
• Refer to INSTALLING THE REAR CENTER ARMREST .
