Remove the backrest cover from front seat-backrest
Preliminary work
- Refer to REMOVING FRONT SEAT .
- Refer to REMOVING THE FRONT HEAD RESTRAINT .
- Refer to REMOVING THE GUIDE SLEEVE FOR THE FRONT HEAD RESTRAINT .
- Refer to REMOVING OUTER COVER ON FRONT SEAT .
- Refer to REMOVING INNER COVER FROM THE FRONT SEAT .
- Refer to REMOVING THE REAR PANEL FROM THE FRONT SEAT BACKREST .
- Refer to REMOVING THE BACKREST COVER WITH THE UPHOLSTERY FOR THE FRONT SEAT .
- Refer to REMOVING SIDE AIRBAG FROM FRONT SEAT .

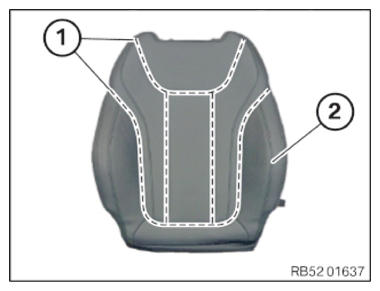

- Loosen all clamp on the trim wires (1) .
- Remove the backrest cover (2) from the upholstery.
- Completely remove clamps from the backrest cover (2) and the cushion.
