Remove trailing arm
WARNING:
Vehicle may slip off the vehicle hoist if the vehicle hoist is handled incorrectly
.
Danger! Immobilization period-threatening injuries!
Danger! Immobilization period-threatening injuries!
- Observe safety instructions on raising the vehicle using a vehicle hoist.
- For additional information see: 00... RAISING THE VEHICLE WITH A VEHICLE LIFT .

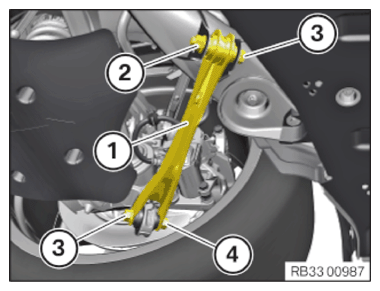

- Release the nuts (2) and (4) .
- Pull out the screws (3) .
- Remove the trailing arm (1) .
