Installing the central rear lower strap
NOTE:
TECHNICAL INFORMATION
Clean all threaded belt connections with micro-encapsulated outer and internal threads.
Shavings or other debris must not remain in the components.
If a microencapsulated screw is reused, it must be coated with the following screw locking agent: Loctite 243, medium strength .
The screw connection must be completed within 10 minutes as hardening begins after this period.
Clean all threaded belt connections with micro-encapsulated outer and internal threads.
Shavings or other debris must not remain in the components.
If a microencapsulated screw is reused, it must be coated with the following screw locking agent: Loctite 243, medium strength .
The screw connection must be completed within 10 minutes as hardening begins after this period.
NOTE:
TECHNICAL INFORMATION
Component is encoded against incorrect assembly.
Component is encoded against incorrect assembly.

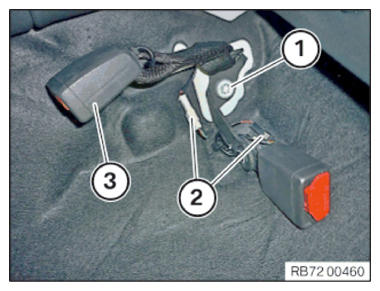

- Guide in the lower rear center strap (3) and position it correctly.
- Connect connectors (2) and lock.
- Tighten down screw (1).
TIGHTENING TORQUE SPECIFICATION
| Lower strap to body | ||
|---|---|---|
| M12 screw | Tightening torque | 42 Nm |
Follow-up work
- Refer to INSTALLING THE REAR SEAT .
