Remove rear left lower strap
NOTE:
TECHNICAL INFORMATION
Clean all threaded belt connections with micro-encapsulated outer and internal threads.
Shavings or other debris must not remain in the components.
If a microencapsulated screw is reused, it must be coated with the following screw locking agent: Loctite 243, medium strength .
The screw connection must be completed within 10 minutes as hardening begins after this period.
Clean all threaded belt connections with micro-encapsulated outer and internal threads.
Shavings or other debris must not remain in the components.
If a microencapsulated screw is reused, it must be coated with the following screw locking agent: Loctite 243, medium strength .
The screw connection must be completed within 10 minutes as hardening begins after this period.
Preliminary work
- Refer to REMOVING REAR SEAT BENCH .

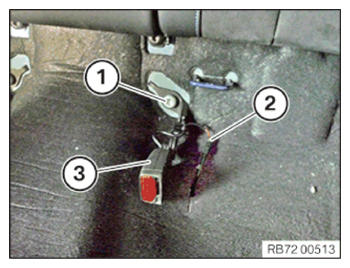

- Loosen screw (1).
- Unlock plug connection (2) and disconnect.
- Feed out the lower strap (3).
