Remove rear section of the front right wheel arch cover
NOTE:
Description is for left component only. Procedure on the right side is identical.
Removing the rear section of the front wheel arch cover front
NOTE:

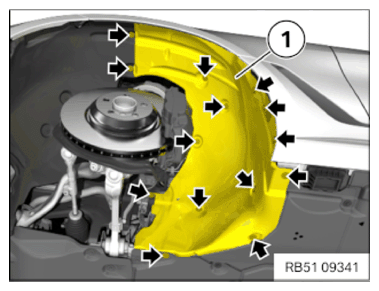

To provide a better overview: Schematic diagram with partially hidden components.
- Loosen the expanding rivet (1).
- Remove screws (arrows).
- Removing the rear section of the front wheel arch cover front (2).
NOTE:
To provide a better overview: Schematic diagram with partially hidden components.
- Loosen the expanding rivet (1).
- Remove screws (arrows).
- Removing the rear section of the front wheel arch cover (2).
