Prepare the spring tensioner

NOTE: TECHNICAL INFORMATION
Different variants may be installed depending on the vehicle equipment.

Basic version:
Be sure to use the coil spring with the special tool 2 240 482 and that the pressure plate (1) is tensioned.

Courtesy of BMW OF NORTH AMERICA, INC.
Version Sport and BMW M Performance Automobile:
Make sure that the coil spring is tensioned with two pressure plates (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Preparing the spring tensioner (basic version)

NOTE: RISK OF DAMAGE
Damage of the coil spring.
Any use of faulty protective inserts leads to coil spring damage. Faulty protective inserts may lead to a cracked coil spring (corrosion).

Check the protective insert for wear or damage and if necessary, replace the protective inserts.

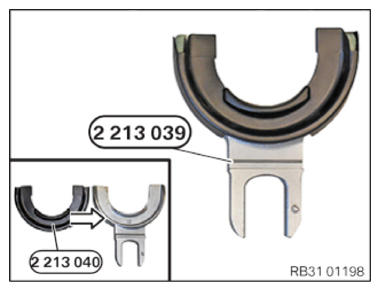

Mount special tool 2 213 040 (31 3 364) on special tool 2 213 039 (31 3 382) in the arrow direction.
Special tool 2 213 039 (31 3 382) absolutely must be used with the protective insert!

Courtesy of BMW OF NORTH AMERICA, INC.
Clamp special tool 2 213 022 (31 3 340) in the vice.

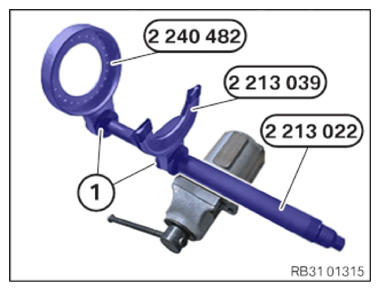

Position special tools 2 213 039 (31 3 382) and 2 240 482 on special tool 2 213 022 (31 3 340) from above until you can feel and hear the retaining bolts (1) snap in.
Check the positions of the special tools 2 213 039 (31 3 382) and 2 240 482 and correct as needed.

Courtesy of BMW OF NORTH AMERICA, INC.

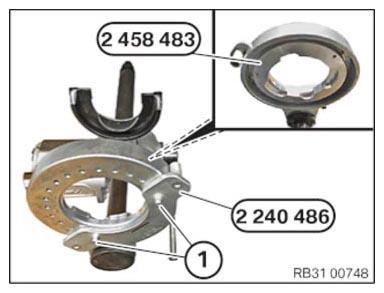

Position special tool 2 458 483 on the mounting plate.
Position special tool 2 240 486 on the mounting plate.
The threaded connection is made via bores 7 and 15 .
Turn special tool 2 458 483 until special tool 2 240 486 can be screwed into the prescribed bores.
Hand-tighten the screws (1).

Courtesy of BMW OF NORTH AMERICA, INC.

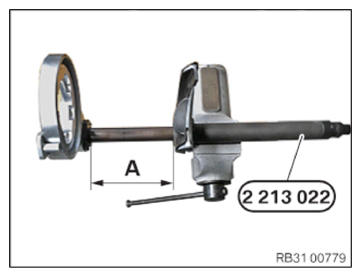

Adjust the special tool 2 213 022 (31 3 340) to dimension (A).
Dimension (A) = 150 mm to 175 mm

Courtesy of BMW OF NORTH AMERICA, INC.

Preparing spring tensioner (Sport and BMW M Performance Automobile)

NOTE: RISK OF DAMAGE
Damage of the coil spring.
Any use of faulty protective inserts leads to coil spring damage. Faulty protective inserts may lead to a cracked coil spring (corrosion).

Check the protective insert for wear or damage and if necessary, replace the protective inserts.

Mount special tool 2 213 040 (31 3 364) on special tool 2 213 039 (31 3 382) in the arrow direction.
Special tool 2 213 039 (31 3 382) must be prepared twice and must be used with the protective insert!

Courtesy of BMW OF NORTH AMERICA, INC.
Clamp special tool 2 213 022 (31 3 340) in the vice.

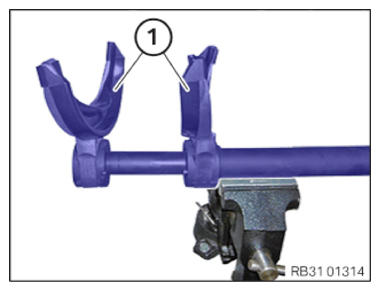

Position the pressure plates from above on special tool 2 213 022 (31 3 340) until you feel and hear the retaining bolts snap in.
Check the position of the pressure plates, correct if necessary.

Courtesy of BMW OF NORTH AMERICA, INC.
Adjust the special tool 2 213 022 (31 3 340) to dimension (A).
Dimension (A) = 90 mm - 95 mm

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: TECHNICAL INFORMATION
Different variants may be installed depending on the vehicle equipment.

Basic version and SPORT:

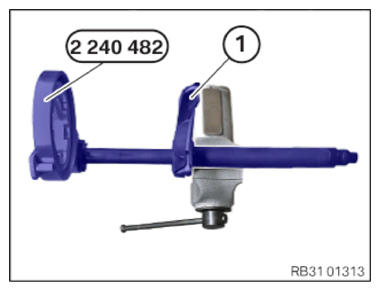

The coil spring is tensioned with the special tool 2 240 482 and a pressure plate (1).

Courtesy of BMW OF NORTH AMERICA, INC.
BMW M Performance Automobile and ALPINA:
The coil spring is tensioned with two pressure plates (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Prepare the spring tensioner (basic version and SPORT)

NOTE: RISK OF DAMAGE
Damage of the coil spring.
Any use of faulty protective inserts leads to coil spring damage. Faulty protective inserts may lead to a cracked coil spring (corrosion).

Check the protective insert for wear or damage and if necessary, replace the protective inserts.

Mount special tool 2 213 040 (31 3 364) on special tool 2 213 039 (31 3 382) in the arrow direction.
Special tool 2 213 039 (31 3 382) absolutely must be used with the protective insert!

Courtesy of BMW OF NORTH AMERICA, INC.
Clamp special tool 2 213 022 (31 3 340) in the vice.
Position special tools 2 213 039 (31 3 382) and 2 240 482 on special tool 2 213 022 (31 3 340) from above until you can feel and hear the retaining bolts (1) snap in.
Check the positions of special tools 2 213 039 (31 3 382) and 2 240 482 and, if necessary, correct them.

Courtesy of BMW OF NORTH AMERICA, INC.
Position special tool 2 458 483 on the mounting plate.
Position special tool 2 240 486 on the mounting plate.
The threaded connection is made via bores 7 and 15 .
Turn special tool 2 458 483 until special tool 2 240 486 can be screwed into the prescribed bores.
Hand-tighten the screws (1).

Courtesy of BMW OF NORTH AMERICA, INC.
Adjust the special tool 2 213 022 (31 3 340) to dimension (A).
Dimension (A) = 150 mm to 175 mm

Courtesy of BMW OF NORTH AMERICA, INC.

Preparing spring tensioner (BMW M Performance Automobile and ALPINA)

NOTE: RISK OF DAMAGE
Damage of the coil spring.
Any use of faulty protective inserts leads to coil spring damage. Faulty protective inserts may lead to a cracked coil spring (corrosion).

Check the protective insert for wear or damage and if necessary, replace the protective inserts.

Mount the special tool 2 213 040 (31 3 364) on the special tool 2 213 039 (31 3 382) .
Use the special tool 2 213 039 (31 3 382) twice and always use it with the protective insert!

Courtesy of BMW OF NORTH AMERICA, INC.
Clamp special tool 2 213 022 (31 3 340) in the vice.
Position the pressure plates from above on the special tool 2 213 022 (31 3 340) until you feel and hear the retaining bolts snap in.
Check the position of the pressure plates and correct it if necessary.

Courtesy of BMW OF NORTH AMERICA, INC.
Adjust the special tool 2 213 022 (31 3 340) to dimension (A).
Dimension (A) = 90 - 95 mm
