Measuring the ride height of the front axle and adjusting the normal position
- Set the vehicle on the wheels (e.g. workshop pit or vehicle lift for Kinematics Diagnosis System).

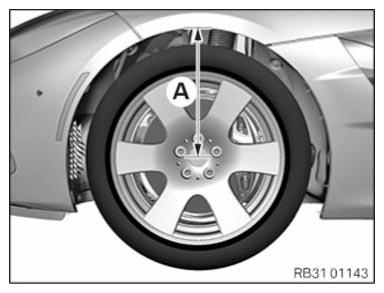

- Measure the ride height (A).
- Load or unload the vehicle until the ride height (A) is within the tolerance.
TECHNICAL DATA SPECIFICATION
| G22/G23 Rear-wheel drive, standard suspension/sport suspension settings, lowered | ||
| Measured from center of wheel hub to lower edge of wheel arch | Dimension A | 361 +10-10 mm |
