Installing the bracket for the electric coolant pump on the component carrier

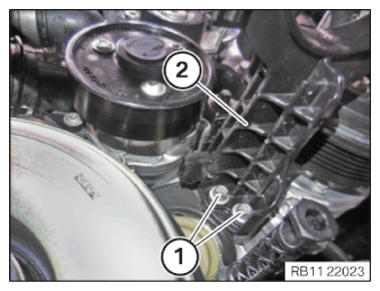

• Feed in and position the holder (2) of the electric coolant pump.
• Tighten down screws (1).

TIGHTENING TORQUE SPECIFICATION

Electric coolant pump holder on component carrier
M6X20	tightening torque	8 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

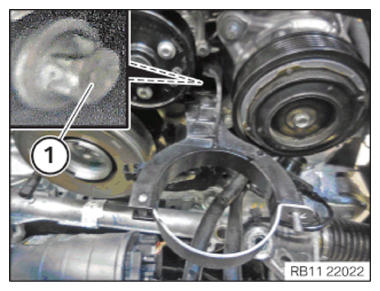

• Tighten down screw (1).

TIGHTENING TORQUE SPECIFICATION

Electric coolant pump holder on component carrier
M6X20	tightening torque	8 Nm

Courtesy of BMW OF NORTH AMERICA, INC.
