Install the underbody protection of the steering gear

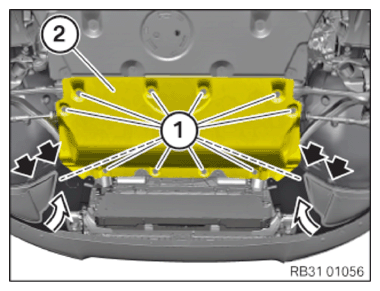

- Position the underbody protection of the steering gear (2) .
- Tighten down screws (1)
.TIGHTENING TORQUE SPECIFICATION
Under body protection of the steering gear Hexagon bolt for thermoplastic Tightening torque 2.6 Nm Hexagon screw M6x20 Tightening torque 8 Nm - Position the wheel arch cover at the bottom in the arrow direction.
- Tighten the screws (arrows) of the wheel arch cover at the bottom on the wheel arch cover.TIGHTENING TORQUE SPECIFICATION
Wheel arch trim panel, front Thermoplastic hexagon screw Tightening torque 2.6 Nm
