If installed: Securing the engine oil cooler

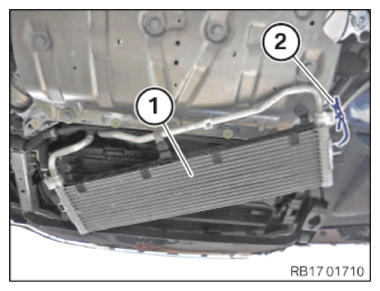

• Remove cable tie (2).
• Position engine oil cooler (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

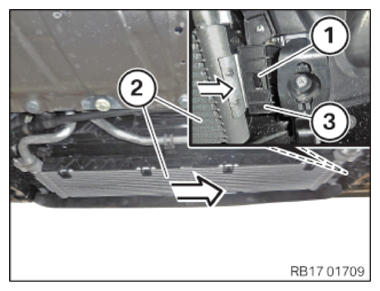

• Guide in and install engine oil cooler (2) on holder (3) in the arrow direction.
• Ensure that lock (1) snaps in audibly.

  Courtesy of BMW OF NORTH AMERICA, INC.

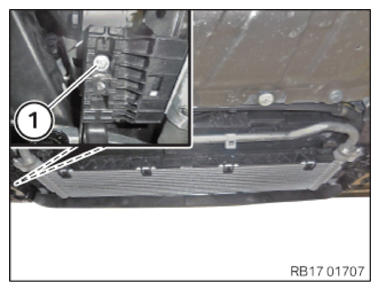

• Tighten down screw (1).

TIGHTENING TORQUE SPECIFICATION

Engine oil cooler on bumper bracket
M6X25	tightening torque	8 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

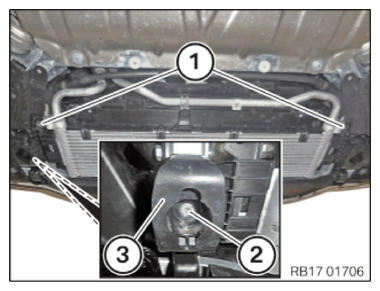

• Replace the rivet (2).

  Parts:  rivet

• Install and rivet the damper (3).
• Tighten down screws (1).

TIGHTENING TORQUE SPECIFICATION

Lower side cover at front
Hexagon screw for thermoplastic	Tightening torque	3 Nm

Courtesy of BMW OF NORTH AMERICA, INC.
