Fastening the rear left and right anti-roll bar link on the anti-roll bar
NOTE:
Perform the steps on the left and right side.

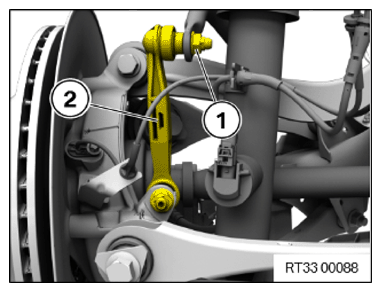

Fastening the rear anti-roll bar link to the anti-roll bar
- Position anti-roll bar link (2).
- Replace nut (1).
Parts: Nut
- Tighten nut (1). If necessary, counter support at the Torx socket.
TIGHTENING TORQUE SPECIFICATION
| Rear anti-roll bar link to anti-roll bar/wheel carrier | ||
| M10 Replace nut. |
tightening torque | 56 Nm |
