Installing the storage tray

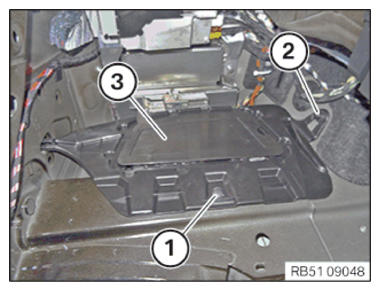

- Install the storage tray (3) and feed into the guide at the rear.
- Install the expanding rivet (1).
- Tighten nut (2).
TIGHTENING TORQUE SPECIFICATION
| Storage tray to body |
| Plastic nut |
Tightening torque |
3.0 Nm |
