Install right rear luggage compartment side shelf

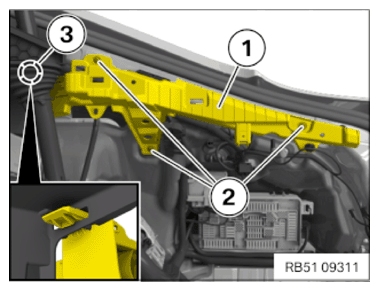

• Guide the rear luggage compartment side shelf (1) toward the front into the detent (3) and clip in.
• Position the rear luggage compartment side shelf (1).
• Tighten the screws (2).
  TIGHTENING TORQUE SPECIFICATION



  Luggage compartment to body
  Oval-head screw	Tightening torque	4 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Clip the vehicle wiring harness with the holders into the rear luggage compartment side shelf (1).

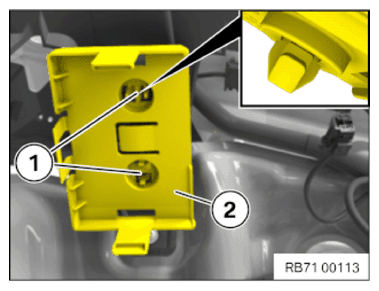

• Fit the control unit bracket for the Park Distance Control (PDC) (2) and clip it in with the detents (1).

Courtesy of BMW OF NORTH AMERICA, INC.
