Removing the electrical drive unit from the assembly jig
Filling the transmission oil
CAUTION:
Materials harmful to health.
Contact with fluids harmful to health!
Contact with fluids harmful to health!
- Note and follow safety instructions on containers.
- Conduct all work in appropriate personal protective equipment only.
NOTE:
TECHNICAL INFORMATION
Collect and dispose of emerging fluids. Observe country-specific waste disposal regulations.
Collect and dispose of emerging fluids. Observe country-specific waste disposal regulations.
NOTE:
TECHNICAL INFORMATION
A temperature of the electric drive unit of approx. 18°C is sufficient for draining and topping up the transmission oil.
A temperature of the electric drive unit of approx. 18°C is sufficient for draining and topping up the transmission oil.
NOTE:
TECHNICAL INFORMATION
It is not possible to check the oil level using the oil filler plug.
It is not possible to check the oil level using the oil filler plug.

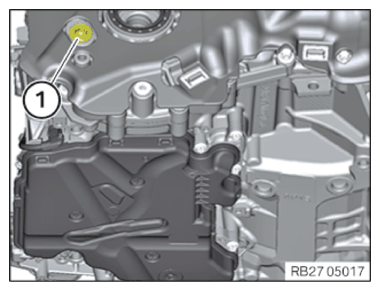

- Open the oil filler plug (1) .
- Top up the transmission oil using 0 493 337 (00 2 080). TECHNICAL DATA SPECIFICATION
Oil for electric machine transmission HEAT 220 LR 1.7| - Replace oil filler plug (1)
.
Parts: Oil filler plug
- Tighten oil filler plug (1)
.TIGHTENING TORQUE SPECIFICATION
Oil filler plug to transmission M22 Replace screw. 60 Nm - Mount electric drive unit (3) using 2 456 428 and 5 A2B A98 from 2 220 718.

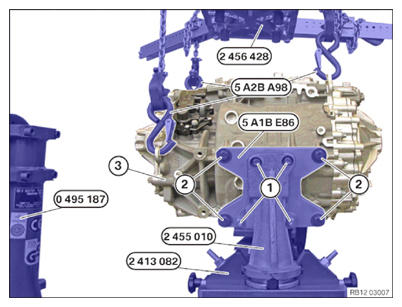

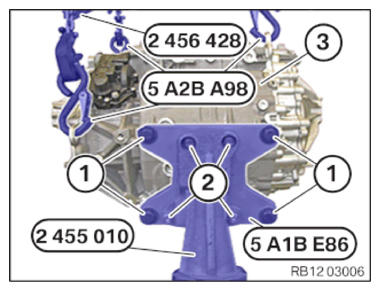

- Slacken screws (2) by half a revolution.
- 2 455 010
Release from 2 413 082
and lift up.
- Loosen screws (1) .
- 2 455 010 Remove from electric drive unit (3) using 5 A1B E86
.

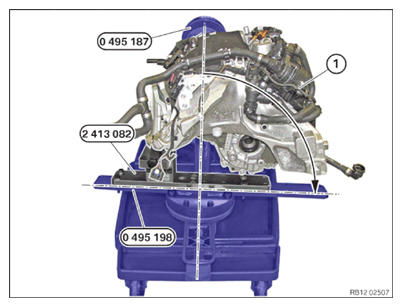

- Swivel the electric drive unit (1)
in the arrow direction by 90° to the pictured position.
Filling the transmission oil
CAUTION: Materials harmful to health.
Contact with fluids harmful to health!- Note and follow safety instructions on containers.
- Conduct all work in appropriate personal protective equipment only.
NOTE: TECHNICAL INFORMATION
Collect and dispose of emerging fluids. Observe country-specific waste disposal regulations.NOTE: TECHNICAL INFORMATION

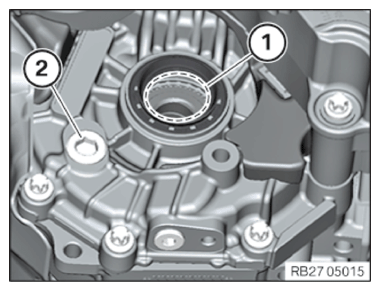

A temperature of the electric drive unit of approx. 18°C is sufficient for draining and topping up the transmission oil. - Top up the transmission oil with the special tool 0 493 337 (00 2 080)via the opening of the output
shaft (1)
.
If necessary, do not use the existing screw (2) .
TECHNICAL DATA SPECIFICATIONOil for electric machine transmission HEAT 220 MF 0.5 | - Mount electric drive unit (3) using 5 A2B A98 and 2 456 428 to 2 220 718.

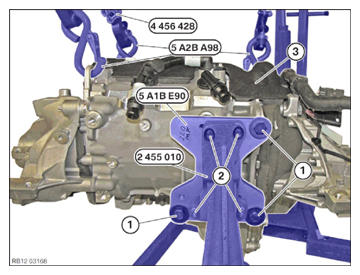

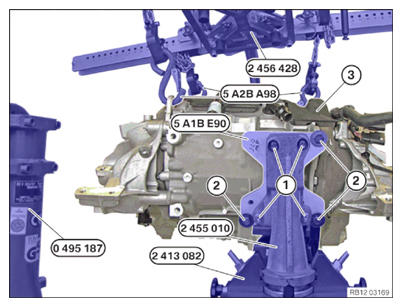

- Slacken screws (2) by half a revolution.
- 2 455 010
Release from 2 413 082
and lift up.
- Loosen screws (1) .
- 2 455 010 Remove from electric drive unit (3) using 5 A1B E90 .
