Remove thrust field
Precondition
Torsion struts are expanded.
NOTE:
TECHNICAL INFORMATION
Driving without thrust field is not permissible.
NOTE:
TECHNICAL INFORMATION
Secure component against falling.

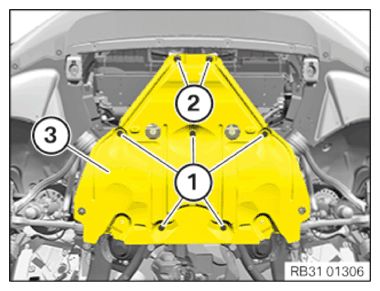

- Release screws (1)
and (2)
.
- Remove the thrust field (3)
.
