Release the tension struts from the swivel bearing on the left and right
Release the tension struts from the swivel bearing on the left and right
NOTE:
Perform the steps on the left and right side.

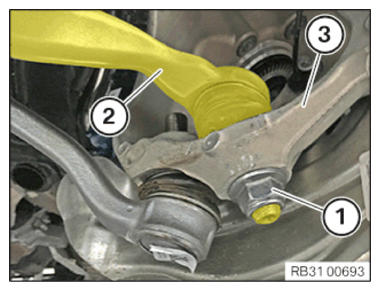

Releasing tension strut from swivel bearing
Unfasten nut
(1)
.
NOTE:
Counter-hold at the Torx socket.
Release tension strut
(2)
from swivel bearing
(3)
.
Courtesy of BMW OF NORTH AMERICA, INC.
