Programming the electrical machine electronics, carry out functional check before reinstallation

Connecting the eDrive motor to the vehicle (220LR, 220XLR)

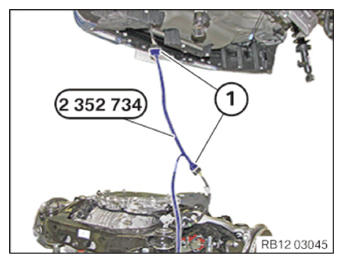

• Connect highly integrated electrified drive topology using 2 352 734  to the vehicle.
• Close the plug connections (1)  .

  Courtesy of BMW OF NORTH AMERICA, INC.

  Program the EME

• Program EME.

  Perform functional check before refitting (170MF, 220LR, 220XLR)

  NOTE: TECHNICAL INFORMATION
  Functional check cannot be performed before reinstallation if the SME is disconnected.
• Execute the service function at the following path:
• Electric drive
• Electrical machine electronics
• Highly integrated electrified drive topology functional check

  Disconnecting the eDrive motor and vehicle (220LR, 220XLR)

• Disconnect plug connection (1)  .
• 2 352 734  Remove.

  Courtesy of BMW OF NORTH AMERICA, INC.
