Partially removing the left and right brake ventilation duct

NOTE: Perform the steps on the left and right side.

Partially removing the air duct for the brake

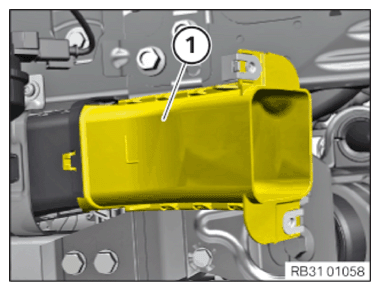

Unclip and remove the air duct (1) .

Courtesy of BMW OF NORTH AMERICA, INC.
