Installing the wiring harness mounting
Installing the wiring harness mounting

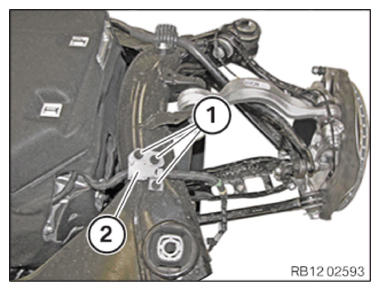

Position wiring harness mounting
(2)
.
Tighten the screws
(1)
.
TIGHTENING TORQUE SPECIFICATION
Low-voltage wiring harness attachment to rear axle support
Tightening torque
2.5 Nm
