Installing the top sound insulation
- Install the sound insulation (5).
- Secure the clamps (arrows).
- Position the high-voltage cable (4) as shown.
- Tighten the screws (3)
.TIGHTENING TORQUE SPECIFICATION
High-voltage wiring harness to electric drive unit M6 Tightening torque 8 Nm - Install strut (2) .

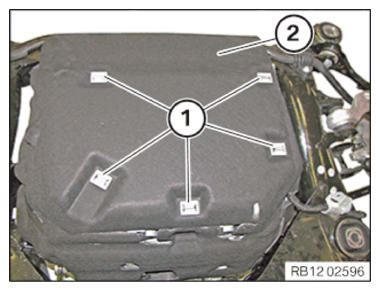

- Tighten the screws (1)
.TIGHTENING TORQUE SPECIFICATION
Strut on engine support bracket M8 Tightening torque 28 Nm
