Installing the support for electric coolant pump
Installing the support for electric coolant pump

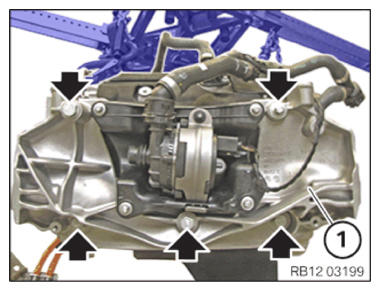

Install the support
(1)
.
Tighten screws (arrows).
TIGHTENING TORQUE SPECIFICATION
Engine support bracket on highly integrated electrified drive topology
M12x1.5x75/100/110/135/215
Tightening torque
100 Nm
Courtesy of BMW OF NORTH AMERICA, INC.
